The CVS & CSD range is available from 12ft (3.6m) to 32ft (9.6m). It features a fixed frame and adapter plate system. All models are suitable for harvesting a wide range of cereal crops including, wheat, barley, oats, warm season grasses and peas.
Rotor Drive Options: Variable Speed belt (CVS) or High Torque Drive System (CSD).
CVS & CSD Range Crop Suitability

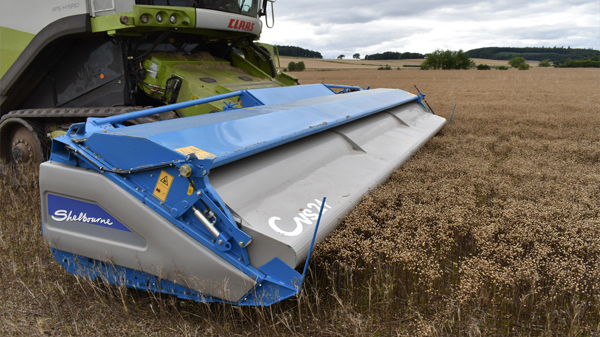

Cereal Crops
Wheat
Barley
Oats
Flax / Linseed
Field Peas
Grasses

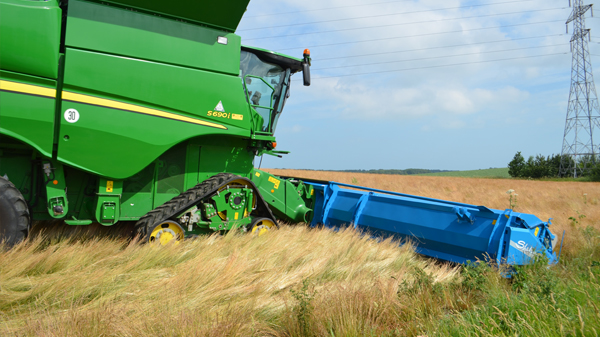

The CVS stripper header has revolutionized harvest for many grass seed producers around the world. The strippers ability to comb lodged crops of ryegrass and fescue off the ground and strip the seed without taking much of the green stem into the combine increases harvesting efficiency by up to 50%. Because the combine no longer has to process so much foreign material the seed recovery rates generally improve.
Hemp

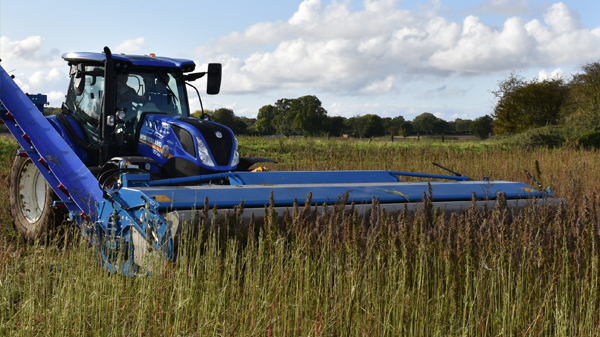

Shelbourne stripper headers have been used globally for harvesting hemp leaves, flowers & buds for a number of years. The action of the stripping rotor combs through the fibrous stalk removing the seeds, buds & leaves with little damage to the fragile crop and therefore maximizing the CBD oil content available.
CVS - Variable Speed Drive System

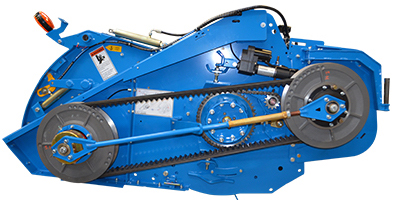

The CVS models utilize the proven variable speed belt drive system, rotor speed is adjusted with an electric actuator on the drive pulley in conjunction with a posi-torque spring tension system fitted to the front pulley.
The in cab monitor allows the operator to adjust the speed of the stripping rotor by controlling an electric actuator that adjusts the drive pulley. The speed of the rotor and the auger are displayed and includes an alarm system to aid the operator.
Features
- Heavy Duty Pozi Torque Drive Pulley
- 3 Spigot rear pulley
- Speed Range 420-800rpm
- Electric Actuator Control
- In cab monitor & alarm system
CSD - High Torque Drive System (HTD)
The CSD models utilize the proven High Torque Drive system, the drive transmits maximum power to the stripping rotor via a high torque timing belt. The speeds can be adjusted by swapping a combination of 3 pulleys and tensioning the belt by adjusting the pivoting gearbox which maximizes the overall belt wrap. Its overall design is simple and requires minimal maintenance.
The speed of the rotor and the auger are displayed on the monitor in cab which includes an alarm system to aid the operator.
Features
- High torque timing belt
- 4 speed ranges
- 3 pulleys 56t, 64t & 72t
- Sprung pivoting gearbox for belt tension
- Minimal maintenance
- In cab monitor & alarm system
CVS & CSD Range Standard Features
CVS & CVS Stripper Header Range Benefits
Harvesting Efficiency
The use of a CVS stripper header increases the capacity of the combine by an average of 50%.
Crop Recovery
The CVS header has developed a reputation for improved crop recovery in lodged crop conditions.
Fuel Saving
The CVS header has developed a reputation for improved crop recovery in lodged crop conditions.
Better Quality Grain
Harvest Earlier
Improved Double Cropping
Increased Soil Moisture
